Shared Memory Tiling

In the previous chapter, we concluded that the coalesced kernel loads data more efficiently by reducing the number of hardware transactions. From the perspective of Matrix B, you pack the memory such that each thread accesses memory in a row major fashion where each thread accesses the matrix in a sequential and adjacent manner; so the hardware only needs 4 transactions instead of 32 to serve the whole warp. And from the persepctive of Matrix A, you optimized it so that all 32 threads access the same data, bringing the load down to a single transaction, which gets broadcasted to all 32 lanes/registers.

You should by now realize that global memory coalescing optimizes on the thread level, however we can optimize the kernel even further. If you take a step back and view the kernel from a warp level, you will be able to spot the redundancies that allows further optimizations.

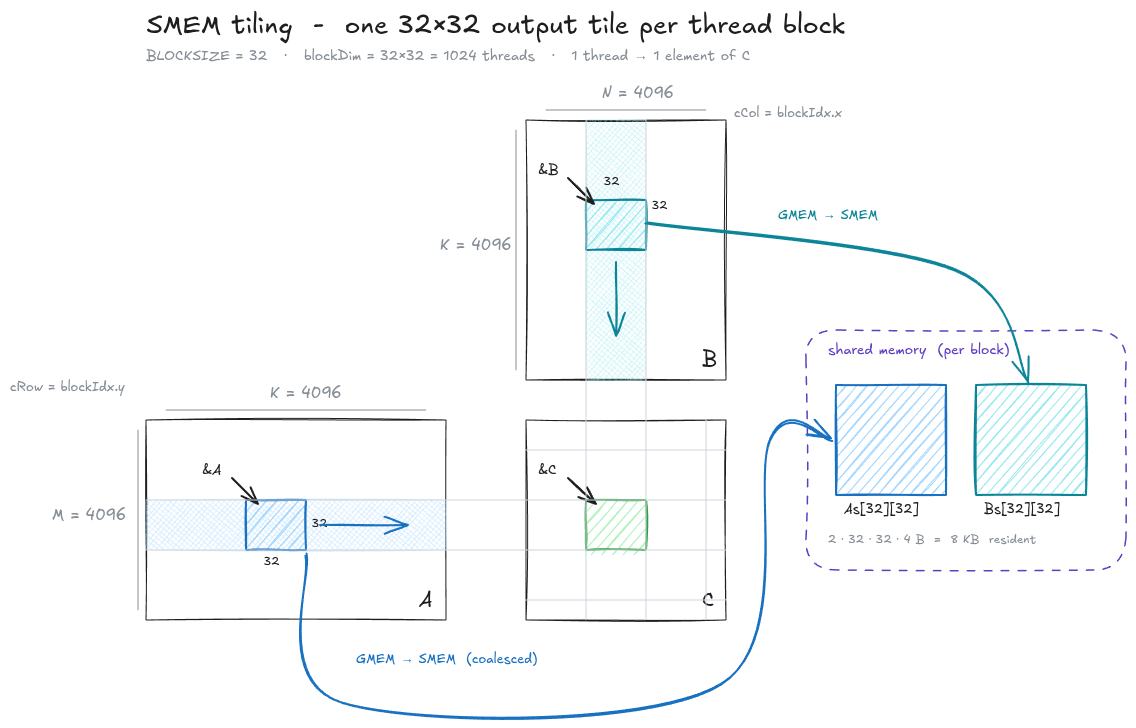

The whole premise of the shared memory tiling technique that is introduced in this chapter is to move a block size matrix, (BLOCKSIZE * BLOCKSIZE), to the shared memory thats located on the streaming multi-processor. This is because accessing global memory takes longer than accessing shared memory, and since a lot of data is being resued, we can temporarily store the data inside the shared memory for faster access.

Looking at matrix B as a whole, understand that each row corresponds to a whole warp. And each warp accesses the same coalesced data within B. In a single warp, the threads accesses 32 floats that walks along the whole row. Warp 0 needs 32 floats that span B[k][0-31] during k lockstep, warp 1 needs 32 floats that also span B[k][0-31] on k lockstep, essentially all 32 warps needs the same row, the same 32 floats. Therefore 32 distinct warps hits the L1 cache asking for the same 32 floats of data or 128 bytes. This means the hardware executes 32 redundant reads for data that has already been fetched by one of the 32 warps.

Matrix A's inefficiency is a little tougher to spot. The warps load a new row. Warp 0 needs A[0][k], warp 1 needs A[1][k], and warp 2 needs A[2][k]. So collectively, all the warps during one lockstep reads down a whole column A[0-31][k]. Therefore you have 32 independent warps accessing strided memory within the VRAM. Even though global memory coalescing broadcasts the data between all of the threads, this optmization only exists within the scope of a warp. So do not mistake strided access as another oportunity for coalescing. Instead, just acknoledge that all the threads within a warp accesses the same element. And all of the warps accesses the element on the same column space, thus memory access is strided. So whole block tile contains 32 warps that generates 32 uncoalesced transactions such that each wrap fetches one byte sector for a single lockstep.

Shared Memory Tiling fixes both inefficiencies in two different ways:

Firstly, for the matrix B, a corresponding tile within Matrix B is loaded into the shared memory once. Now, when warps 0 through 31 need to read the same row of B, they can read it from the tile stored within the shared memory. Instead of 32 redundant reads from the global memory, they are reduced to just 1 read from global memory and 32 shared memory loads.

Secondly, for matrix A, to load the corresponding 32x32 tile into shared memory, the threads must change their global memory access pattern. Instead of all 32 threads in a warp fetching the same float, and all warps are accesses data in a strided manner forcing the block to make 32 scattered broadcast transactions down a column, the threads inside each warp are reassigned to fetch adjacent elements across a contiguous row of Matrix A. This turns the scattered vertical reads from a warp perspective into perfectly coalesced 128-byte memory accesses. Now, each warp collectively reads an entire row of the tile into shared memory in just 4 hardware transactions, completely eliminating the scattered memory bottleneck.

Here is how you launch the kernel:

const int BLOCKSIZE = 32;

// note the order: x walks M here, not N
dim3 gridDim(CEIL_DIV(M, BLOCKSIZE), CEIL_DIV(N, BLOCKSIZE));
dim3 blockDim(BLOCKSIZE * BLOCKSIZE);

sgemm_smem_tiling<BLOCKSIZE><<<gridDim, blockDim>>>(M, N, K, alpha, A, B, beta, C);

This is the SMEM tiling kernel:

template <const int BLOCKSIZE>
__global__ void sgemm_smem_tiling(int M, int N, int K, float alpha, const float *A, const float *B, float beta, float *C) {
  // block position within the grid
  const int cRow = blockIdx.x;
  const int cCol = blockIdx.y;

  // the two tiles this block stages in shared memory
  __shared__ float As[BLOCKSIZE * BLOCKSIZE];
  __shared__ float Bs[BLOCKSIZE * BLOCKSIZE];

  // thread position within the block's tile of C
  const int threadRow = threadIdx.x / BLOCKSIZE;
  const int threadCol = threadIdx.x % BLOCKSIZE;

  // move each pointer to the top left corner of this block's tile
  A += cRow * BLOCKSIZE * K;
  B += cCol * BLOCKSIZE;
  C += cRow * BLOCKSIZE * N + cCol * BLOCKSIZE;

  float acc = 0.0f;
  for (int bkIdx = 0; bkIdx < K; bkIdx += BLOCKSIZE) {
    // one element per thread, GMEM -> SMEM
    As[threadRow * BLOCKSIZE + threadCol] = A[threadRow * K + threadCol];
    Bs[threadRow * BLOCKSIZE + threadCol] = B[threadRow * N + threadCol];

    // block all threads until the shared memory is fully populated
    __syncthreads();

    // advance A right by one tile, B down by one tile
    A += BLOCKSIZE;
    B += BLOCKSIZE * N;

    // partial dot product over the cached tile
    for (int k = 0; k < BLOCKSIZE; ++k) {
      acc += As[threadRow * BLOCKSIZE + k] * Bs[k * BLOCKSIZE + threadCol];
    }

    // sync again at the end, so a fast thread cannot overwrite the tile
    // a slow thread is still reading
    __syncthreads();
  }

  C[threadRow * N + threadCol] =
      alpha * acc + beta * C[threadRow * N + threadCol];
}

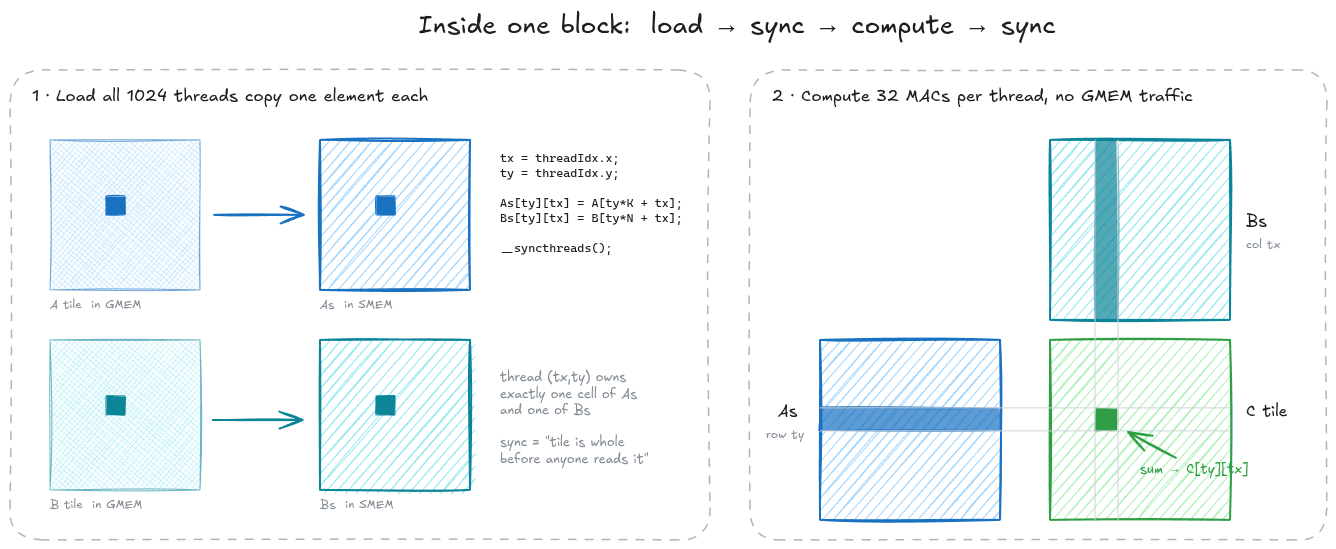

Key Mechanics

1. The pointers A, B, and C are advanced to the block's top left corner before the loop starts. Each pointer marks the relative starting point for a tile. To move the pointers, A += BLOCKSIZE has to step 32 columns right and B += BLOCKSIZE * N has to step 32 rows down.

2. The first __syncthreads() ensure all threads within a warp finishes executing before the warp starts computing again. Otherwise thread that reaches the dot product early would otherwise read cells of As and Bs that another warp has not written yet, and it would read whatever was there before. The second __syncthreads guards read before overwrite. Without it, a faster warp comes around the loop and starts writing the next tile into As while a slow warp is still multiplying with the current one. Removing either of the __syncthreads introduces a race condition.

The Arithmetic

In the previous kernel, every thread that walks a row has to load the entire row K = 4096 and the entire column K = 4096. Therefore each cell output in matrix C requires 4096 + 4096 = 8192 Loads. With the optimized shared memory tiling kernel, we have to look at a whole 32 x 32 block tile instead of a thread. The block walks along the dimension K = 4096 and the tile size is 32, therefore it takes 4096 / 32 = 128 block tiles per matrix to write to the tile in matrix C. Given that we have matrix A and B, we have 256 loads per tile and each tile has 1024 floats, 256 x 1024 = 262,144 total floats. Given that we have 1024 total output cells:

We reduced the loads per cell from 8192 to 256. This is a decrease of global memory traffic by a factor of 32. And the runtime went from 47.0 ms to 33.3 ms, which is 1.41 times faster. The shared memory tiling kernel runs in 33.268 ms at 4131.3 GFLOP/s, which is 11.5% of cuBLAS at M = N = K = 4096, up from 47.007 ms and 8.1%.

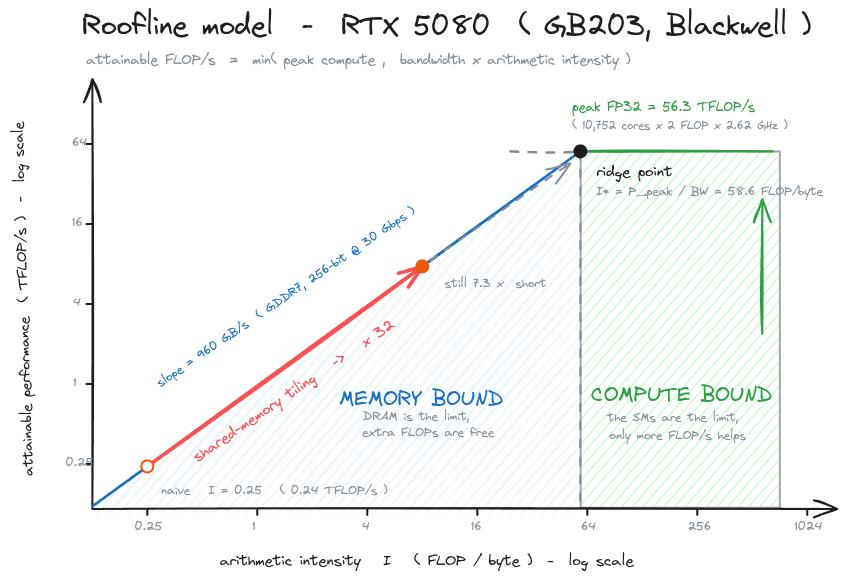

Where You Are On The Roofline

The shared memory tiling kernel moves the arithmetic intensity based on the roofline model. The previous intensity of 0.25 moves to 8 FLOP/byte. This is a 32 times increase. However, it's still 7.3 times short of the theoretical ridge point based on the RTX 5080.

What Could Be Improved

Shared memory tiling dropped the global memory traffic by 32 times. However, against the previous kernel we've only increased the speed by a factor of 1.41x. This makes sense because we simply shifted the traffic from the global memory to shared memory, and as a result we are now bounded by shared memory bandwidth.

Now purely from the arithmetic side of things, there are 2 memory reads for every fused multiply add (FMA), precisely 2K = 8192 reads per output element. This is the same number that the previous kernel achieved prior to the shared memory tiling optimization, meaning we are still reading the same amount of data just from a different memory. So instead of reading from the slow global memory that takes 500 cycles to load, we are doing the loading from the shared memory, which takes 25 cycles to load.

Nsight Compute confirms this. The kernel spends 40.5 warp cycles per issued instruction, and 23.9 of those cycles (58.9%) are stalled on Stall MIO Throttle, which is a warp waiting for a shared memory instruction to issue. The previous kernel stalled 56.1% on Stall LG Throttle, the same queue for global memory. What this tells us it that threads now waste time waiting on data to be loaded from the shared memory region instead of the global memory.

Based on our GPU architecture, each SM has 1536 active threads. Since a block uses 1024 threads, the SM doesn't have enough space to fit another block of 1024 threads. This means there are 512 threads that sit idle when the block is launched on the SM. This tells a story of how threads are being underutilized; therefore, this is a thread mapping issue.

There are two key insights. Firstly, the wait between the threads has now moved to shared memory region. Secondly, we can fit more blocks on a thread. In the next kernel optimization, our main objective would be thread coarsening: optimizing the SGEMM kernel so that one thread can compute multiple cell outputs.
