The Naive Kernel: Establishing a Baseline

For the first kernel, we are really just trying to express GEMM in CUDA. We'll start off by using the grid, block, and thread to assign one thread to each output cell in the output matrix C. Start by expressing each thread with its respective global thread indices:

const int BLOCKSIZE = 32;

const int row = blockIdx.y * BLOCKSIZE + threadIdx.x;
const int col = blockIdx.x * BLOCKSIZE + threadIdx.y;

Given this mapping, a single thread computes the dot product between a row of A and a column of B, then writes the dot product into its corresponding output cell in C.

Therefore, we need to write the kernel for a single thread as everything will be executed in parallel within a warp. For each thread that writes to its own output cell in matrix C, the thread will walk the full K dimension between its corresponding row and column. Written out against our actual function signature, the entire kernel looks like this:

template <const int BLOCKSIZE>
__global__ void sgemm_naive(int M, int N, int K, float alpha, const float *A,
                            const float *B, float beta, float *C) {
  const int row = blockIdx.y * BLOCKSIZE + threadIdx.x;
  const int col = blockIdx.x * BLOCKSIZE + threadIdx.y;

  if (row < M && col < N) {
    float acc = 0.0f;
    for (int i = 0; i < K; ++i) {
      acc += A[row * K + i] * B[i * N + col];
    }
    C[row * N + col] = alpha * acc + beta * C[row * N + col];
  }
}

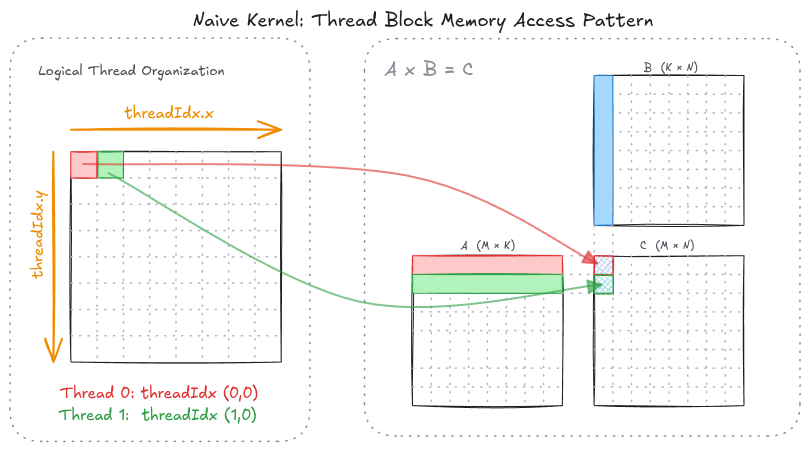

To visualize this naive kernel:

To launch this kernel, we map blockIdx.x and threadIdx.y to col and blockIdx.y and threadIdx.x to row, so the gridDim.x walks along the N dimension and gridDim.y walks along the M dimension. For M = N = 4096 with BLOCKSIZE = 32, that's gridDim = (128, 128, 1) and blockDim = (32, 32, 1), or 16,384 blocks of 1024 threads each, one thread per output element.

const int BLOCKSIZE = 32;

// one threadblock per 32x32 tile of C; grid.x walks N, grid.y walks M
dim3 gridDim(CEIL_DIV(N, BLOCKSIZE), CEIL_DIV(M, BLOCKSIZE), 1);
dim3 blockDim(BLOCKSIZE, BLOCKSIZE);

sgemm_naive<BLOCKSIZE><<<gridDim, blockDim>>>(M, N, K, alpha, A, B, beta, C);

Two details worth noticing.

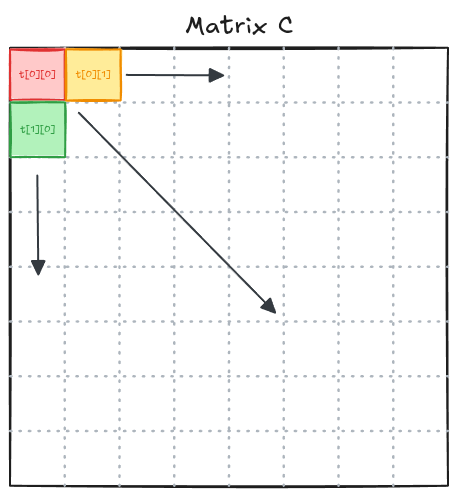

Firstly, the CUDA hardware linearizes the threads in a block when forming warps. Even though we define the block with dimensions x and y, the CUDA hardware flattens everything into a single linear index. Therefore the x dimension is the fastest-changing dimension within the thread block. This matters because it dictates how each cell is accessed within the C matrix. In this case we will walk down column 0, such that the row value is the one incrementing: c[0][0], c[1][0], c[n][0].

Secondly, the CEIL_DIV represents ceiling division, exists because the matrix dimensions are not required to be multiples of the block size, so we round the grid up and let the last blocks hang over the "edge". This is also why we have to have the boundary check in place; the if (row < M && col < N) guard inside the kernel prevents out-of-bounds threads from accessing garbage memory. In our kernel implementation, M = N = K = 4096 with BLOCKSIZE = 32 makes the division exact, but writing the kernel as though it isn't costs one comparison and further prevents bugs related to boundedness.

Running this kernel at M = N = K = 4096 takes 334.8 ms, which works out to 410.5 GFLOP/s. This will be our first baseline that we will try to optimize against cuBLAS's cublasSgemm implementation. Note that the cuBLAS implementation computes the same product in 3.817 ms at 36,011 GFLOP/s. This puts our FP32 SGEMM naive kernel performance at 1.1% of cuBLAS.

One thing to fix about that reference before it gets quoted eleven more times. It is default math cublasSgemm running on the FP32 CUDA cores, not on tensor cores. That matters because this card will do considerably better than 36 TFLOP/s if you let it change the arithmetic: TF32 tensor operations reach roughly 60 TFLOP/s and FP16 inputs with FP32 accumulation roughly 113. No kernel in this article touches tensor cores, so 36,011 GFLOP/s is the honest target, and every percentage from here compares two implementations running on the same units.

Lower Bounding the Fastest Possible Runtime on a Theoretical GEMM

A lower bound identifies the fastest runtime achievable under ideal conditions; we are going to establish the compute floor and the memory floor as theoretical lower bounds on how quickly a theoretical GEMM can execute, based on the GPU's compute throughput and memory bandwidth.

Given that the output matrix C is in the shape of M x N output elements, and there are K elements per dot-product, and there exists 2 operations (multiplication & addition) when computing the dot-product, the SGEMM has to perform 2 x M x N x K floating point operations.

Strictly speaking, for M = N = K = 4096:

Now throughput in GPU computing is the rate at which a system can complete work. The RTX 5080's peak throughput with FP32 is 56.3 Tera FLOP/s; this means it can retire at most 56.3 trillion floating point operations every second. Pushing this GPU to its absolute limit gives us a theoretical compute floor:

Similarly, let's establish the memory floor. Every byte the kernel uses has to come from VRAM, GDDR7 in our case, at least once. For our SGEMM in FP32, each element is 4 bytes, so a single 4096 x 4096 matrix occupies:

The C = alpha*AB + beta*C accumulate form reads A, reads B, reads C, and writes C back. The scalars cost no traffic of their own, so this is four matrix-sized trips through VRAM:

The RTX 5080 has 960 GB/s of memory bandwidth, so even at perfect bandwidth utilization the traffic alone costs:

The GPU overlaps arithmetic with memory traffic rather than serializing them, so these two floors do not add. The kernel is bounded by whichever one is higher:

For now, know that there is no ideal SGEMM kernel with FP32 where dimensions M = N = K = 4096 with this specific GPU can finish in less than 2.44 ms. With our hand written kernel, SGEMM took 334.8 ms, against a floor of 2.44 ms. It is 137 times slower than the ideal.

Placing The Naive Kernel On The Roofline

Taking the higher of the two floors is not a trick, it is the roofline model from the previous section applied to a whole problem rather than to a kernel. Recall the shape of it: attainable performance is min(P_peak, AI x BW), the ridge point on this card sits at 58.6 FLOP/byte, and anything below that intensity is memory bound while anything above it is compute bound.

Now we can place two different things on that roofline. First the problem itself. An ideal GEMM reads A, reads B, reads and writes C, which is the 268.4 MB we already counted, and it performs 137.44 GFLOP:

512 is far to the right of 58.6, so GEMM as a problem is compute bound, by a factor of nearly nine. That is the real reason the compute floor of 2.44 ms won out over the memory floor of 0.28 ms earlier. It also tells us what a good kernel looks like before we write one: matmul has enough reuse available in it that a kernel which exploits that reuse should end up limited by the FP32 units, and every kernel in this article is an attempt to claw back some of that reuse.

Then our actual kernel. Every iteration of the inner loop reads one float from A and one from B, 8 bytes, and performs one multiply and one add, 2 FLOP:

0.25 against a ridge point of 58.6. Our kernel sits 234 times to the left of where it needs to be, which puts it about as deep into the memory bound region as a kernel can get. The problem it is solving is compute bound and the kernel solving it is memory bound, and that single mismatch is the entire subject of this article.

The model also predicts what that intensity should cost us. At 0.25 FLOP per byte the sloped ceiling sits at 0.25 x 960 GB/s = 240 GFLOP/s, which works out to 573 ms. We measured 334.8 ms, or 410.5 GFLOP/s, which is 1.7 times faster than the roof says is possible.

Beating the roofline is a sign that one of its assumptions is wrong, and here it is the assumption that every requested byte comes from VRAM. The kernel asks for 2 x M x N x K x 4 B = 549.8 GB of loads and it does it in 334.8 ms, which is 1642 GB/s of requested bytes against a bus that can only deliver 960. Roughly half of what we ask for never reaches VRAM at all, because the caches are already absorbing it. So the DRAM roofline is not yet the ceiling that binds us. Something closer in is.

That is the honest position after kernel 1. We are memory bound with an intensity 234 times too low, and yet bandwidth is not what we are waiting on. Both of those are true at once, and the second one is the more useful clue.

So really, there's only one question. Where did all this additional time come from and how are we 137 times slower than the theoretical? No single mistake accounts for the whole gap, but the first and the largest of them lies in transaction. How many separate chunks the memory system has to fetch to satisfy a single instruction. A memory instruction does not belong to a thread, it belongs to a warp.

Inefficient Warp Memory Access Pattern

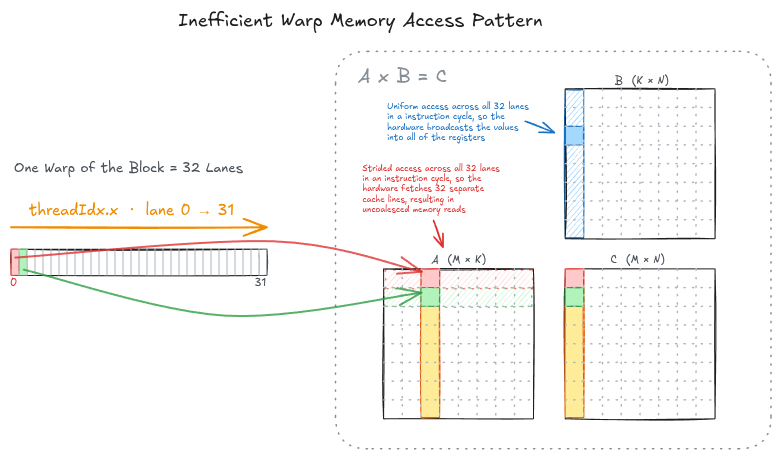

Knowing that threadIdx.x is the fastest-changing dimension, warp 0 is threadIdx.x 0 through 31 at threadIdx.y = 0. And because we mapped row to threadIdx.x, those 32 lanes hold 32 consecutive rows at a single column. The warp maps onto a vertical strip of C, and onto A the same way.

With B, col is warp-invariant, so all 32 threads ask for the same element of B. The hardware then broadcasts that one value into all 32 registers for free data reuse.

So, seen from the warp rather than from the thread, the kernel touches memory in three places: two loads on every iteration of the K loop, and a read-modify-write of C once the loop is done.

A[row * K + i]     load    32 addresses, strided by K        -> 32 sectors
B[i * N + col]     load    col is warp-invariant,
                           all 32 lanes -> one address       ->  1 sector (broadcast)
C[row * N + col]   load    32 addresses, 4096 floats apart   -> 32 sectors
                   store   the same 32 addresses             -> 32 sectors

C shows up twice because beta * C[row * N + col] has to read the old value back before the assignment overwrites it, and the read is strided exactly like the write.

Memory comes back from the L1 in 32-byte sectors. A warp asking for 32 contiguous floats wants 128 bytes, which is 4 sectors, and 4 is the best any warp can do. Two of our three arrays need 32, and C needs it twice.

Strictly speaking, the traffic to C and the load from A each move 1024 bytes to deliver the 128 the warp actually asked for. Seven eighths of every transaction is fetched, paid for, and thrown away, and A pays it on every one of the K iterations. Only the load from B escapes, and it escapes by accident: col depends on blockIdx.x and threadIdx.y, both constant across warp 0, so the hardware hands one sector to all 32 lanes.

One caveat before we carry that number too far. Sectors are traffic between the L1 and the L2, not traffic out of VRAM. Counted as accesses, this kernel asks for 2 x M x N x K x 4 B = 549.8 GB of loads, and at 960 GB/s that alone would take 573 ms, yet the kernel finishes in 334.8 ms. Running the bound backwards, VRAM cannot have supplied more than 334.8 ms x 960 GB/s = 321 GB of that, so a little under half of what we ask for never reaches VRAM at all; the cache is already absorbing it. The waste is real, but it is waste in requests, not in DRAM bytes.

It is worth being precise about what this defect is not. We are not loading too many values. The access count stays at exactly 2K global loads per output element, one from A and one from B on every trip through the K loop, and the next kernel will not change it by a single load. We are loading the right values in the wrong order, and paying 8x the bytes to get them.
